TECHNOBELT®/Wrapped V-Belt
Outside Fabric: Polyester cotton canvas
Tensile Member: Polyester cord
Top Rubber: NR, SBR
Buffer Rubber: NR, SBR
Bottom Rubber: NR, SBR
1. High tensile strength;
2. Smooth transmission, low noise;
3. Absorb shock and have some buffer;
4. The belts are smooth-running, offer the highest power capacity and a long and trouble-free service life.
Keywords：
Machinery Parts
Category：
Wrapped V-Belt
Hot-line：
Details
 |
SIZE MARK： Example: A-20 ﹂ Inside Length 20" ﹂ Belt Type 3V-250 ﹂Outside length 25" ﹂ Belt Type |
Feature
With the features of Oil-resistance,Heat-resistance & Abrasion-resistance,our belts are suitable to be run at very high speed.

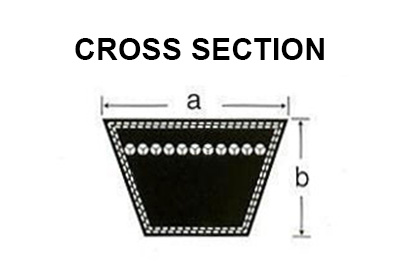

| DIMENSIONS | Top Width (mm) | Height (mm) | Angle ( °) |
| A | 13 | 8 | 40 |
| B | 17 | 11 | 40 |
| C | 22 | 14 | 40 |
| D | 32 | 19 | 40 |
| E | 38 | 23 | 40 |
| K | 6 | 4 | 40 |
| M | 10 | 6 | 40 |
| 3L | 10 | 6 | 40 |
| 4L | 13 | 8 | 40 |
| 5L | 17 | 9 | 40 |
| SPZ | 10 | 8 | 40 |
| SPA | 13 | 10 | 40 |
| SPB | 17 | 14 | 40 |
| SPC | 22 | 18 | 40 |
| 3V | 905 | 8 | 40 |
| 5V | 16 | 13.5 | 40 |
| 8V | 25.5 | 23 | 40 |
