TECHNOBELT®/Automotive Timing Belt

1. Low noise operation
2. No lubricant required
3. Prevent slipping
4. Save fuel
5. Extremely high mechanical efficiency

Keywords：

Machinery Parts

Category：

Automotive Timing Belt

Hot-line：

86-15942618996

Messages

Details

Dalian Taix Industrial Equipment Co., Ltd.

SIZE MARK：
80RU19

80: Tooth Nomber
RU: Tooth Type
19: Belt Width 19mm

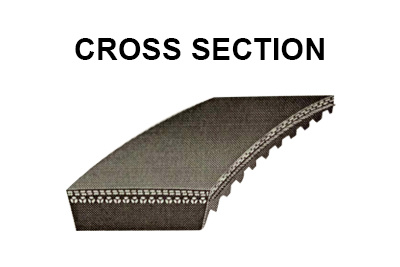

Structure and Material

1. High tensile body (core wire): Glass fiber with high tensile strength and elasticity that prevent belts from stretching.

2. Rubber teeth: Strong heat resistance and oil resistance, super strong cohesion between core wire of tensile body and rubber teeth, HNBR or CR rubber material for option.

3. Nylon fabric: Excellent frictional resistance and low skin-friction coefficient with prolong the service life of product, Domestic or Imported Fabric for option.

Sections:
DIMENSION	Pitch Length (mm)	Belt Height (mm)	Pitch Placement (mm)	Tooth Height (mm)	Belt Width
ZA	9.525	4.1	0.686	1.91	4.65
ZB	9.525	4.5	0.686	2.29	6.12
ZH	9.525	5.5	0.686	3.5	3.27´2
YH	8	5.2	0.686	3.04	2.84´2
ZR	9.525	5.4	0.75	3.2	5.5
YR	8	5.1	0.75	2.8	5.3
ZS	9.525	5.7	0.686	3.53	6.19
YS	8	5.2	0.686	2.95	5.2
Special Sections:
DIMENSION	Tooth Pitch (mm)	Number of Tooth		Length Range
RU	9.525	56-250		533.4-2381.25
YE	8	65-300		520-2440
YU	8	65-300		520-2440
ZBS	9.525	56-250		533.4-2381.25
ZAS	9.525	56-250
FS	9.525	56-250
MY	8	65-300		520-2440
MR	9.525	56-250		533.4-2381.25
Note: Above data is confined with our final confirmation and special sizes, we can also produce according to customer requirements.
