TECHNOBELT®/Ribbed Belt

--Material: CR/EPDM

--Construction:

1. Top Surface: High adhesion chloroprene rubber cushion compound

2. Tension members: Glass fibre, High stretch polyester tension cord

3. Base: Chloroprene rubber compound with transversely oriented fibers

Features:

• Oil resistant & antistatic

• High power transmission capacity

• Temperature range: -25 to +100

• Speed ratios over 1 : 30 are possible

• High maximum belt speed up to 50m/s

• Highly flexible, noise free & smooth running

• Can be used for speed ratios up to 1:30

Keywords：

Machinery Parts

Category：

Ribbed Belt

Hot-line：

86-15942618996

Messages

Details

Dalian Taix Industrial Equipment Co., Ltd.

SIZE MARK：
Example: 4PK650

4：Number of Ribs
PK: Belty Type
650: Pitch Length 650mm

Applications of Ribbed Belts
PH section: Sports and leisure equipment. E.g.: woodworking machinery, magnetic agitators, floor polisher, automatic doors, cement mixers, small compressors, etc.
PJ section: Sports and leisure equipment. E.g.: Woodworking machinery, magnetic agitators, floor polishers, automatic doors, cement mixers, small compressors, etc.
PK section: Cars, Tractors. E.g.: Lifting equipment, fan machine tools, concrete saws, industrial washing machines, wood saws, lift trucks, spraying equipment, ultra light aircraft, cooling plant, etc.
PL section: e.g.: Brick machinery, CNC machine tools, crude oil pumps, high pressure cleaners, escalators, crushers, piston compressors, metal mill, etc.
PM section: e.g.: Quarries, hydro, electric turbines, hammer mills, sugar industry, marble saws, bale shredders, paper industry, cable manufacturing plant, metal mills, etc.

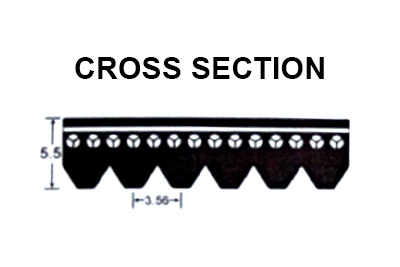

Rib Profile and Measurement:
Rib Type	Rib Pitch (Inch)	Rib Height (Inch)	Thickness (Inch)	Angle (°)
PK	0.063	0.043	0.12	40
PH	0.092	0.071	0.16	40
PJ	0.14	0.094	0.189	40
PL	0.185	0.181	0.38	40
PM	0.37	0.37	0.66	40
