TECHNOBELT®/REC Belt/Raw Edge Cogged V-Belt

Details of TECHNOBELT®:

--Material: CR / HNBR
--Construction:
1. Top Surface: High adhesion chloroprene rubber cushion compound
2. Tension members: Low stretch polyester tension cord
3. Base: Chloroprene rubber compound with transversely oriented fibers
4. Cover: Polyester cotton canvas

Keywords：

Machinery Parts

Category：

Raw Edge Cogged V-Belts

Hot-line：

86-15942618996

Messages

Details

Dalian Taix Industrial Equipment Co., Ltd.

SIZE MARK：
Example: 3VX-220

3V…Belt Type
X…Cogged Type
220..Outside Length 22"

SPZ-650
﹂Pitch length 650mm
﹂Belt Type

Feature

. Extremely small pulley diameters
. High speeds
. Extraordinary power transmission requirements
. High power transmission efficiency
. High grade engineered rubber
. Temperature range from -50ºC to +120ºC
. Oil, heat, ozone and abrasion resistant

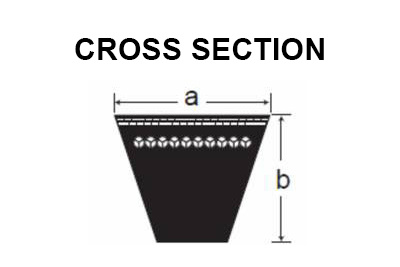

Sections:
DIMENSIONS	Top Width (mm)	Height (mm)	Angle ( °)
AX	13	8	40
BX	17	11	40
CX	22	14	40

Special Sections:
DIMENSIONS	Top Width (mm)	Height (mm)	Angle( °)
SPZX	10	8	40
SPAX	13	10	40
SPBX	17	14	40
SPCX	22	18	40
3VX	9.5	8	40
5VX	16	13.5	40
Note: Above data is confined with our final confirmation and special sizes, we can also produce according to customer requirements.
